| Binocular microscope ideal for students and primary schools, with four achromatic lenses (1000x), FN 18 high eyepoint eyepieces, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 1 W X-LED1 illumination. Slim and easy to carry, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use |
| Head: Binocular, 30° inclined; 360° rotating. |
| Dioptric adjustment: Left eyepiece. |
| Eyepieces: WF10x/18 mm, high eyepoint, secured by screw. |
| Nosepiece: Quadruple ball bearings revolving nosepiece. |
| Objectives: – Achromatic HC type 4x/0.10 – Achromatic HC type 10x/0.25 – Achromatic HC type 40x/0.65 – Achromatic HC type 100x/1.25 (oil/water). All with anti-fungus treatment. |
| Specimen stage: Mechanical stage, 125×116 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm. |
| Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob. |
| Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm. |
| Illumination: X-LED1 with white 1 W LED and brightness control. Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply. |

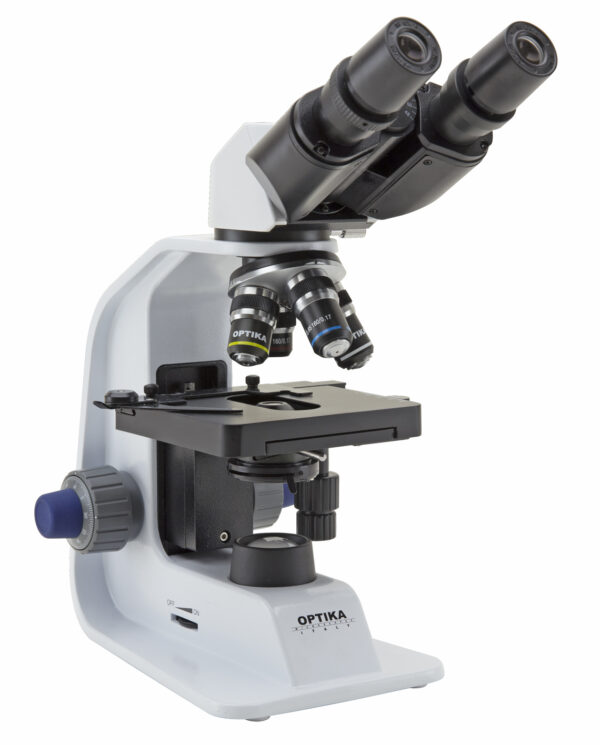

Microscope Binocular Head, Model: B-159
৳ 50,000.00
Binocular, 30° inclined; 360° rotating.
Eyepieces: WF10x/18 mm
Model: B-159
Brand: OPTIKA
Country: ITALY
