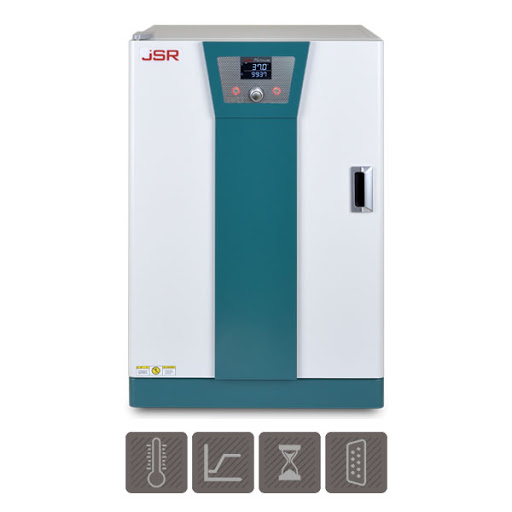

| General Incubator |
| JSGI-Series General Incubator is ideal for bacterial, fungal, cell and tissue culture incubation temperature range from ambient +5 oC to +70 oC. |
Common Specification:
| Common Specification: | Forced Air Convection |
| Heating System | ambient+5 oC ~ 70 oC |
| Temp. Range | ± 0.2 oC at 37.0 oC (JSGI-050T) |
| Accuracy | ± 0.5 oC at 37.0 oC (JSGI-050T) |
| Uniformity | Digital Microprocessor PID Temperature Controller |
| Controller | 3-Zone Temperature Control Algorithm |
| 3-Point Temperature Calibration | |
| 1-Point Temperature Offset Calibration | |
| Class A Pt-100 Ω Sensor | |
| Sensor | Over-Temperature Cut-Off |
| Safety | Over Current Cut-Off |
| Body – Epoxy Powder Coated Steel | |
| Material | Chamber – Stainless Steel 304 |
| Inner Door – 5 mm thick Tempered Safety Glass | |
| including PVC coated wire shelf | |
| optional perforated stainless steel shelf | |
| 220±10% VAC 50/60Hz 1-Phase | |
| Electrical Data | CEE 7/7 Schuko or BS 1363 |
| Plug config. | CEE 7/7 Schuko or BS 1363 |
| Art. No. | JSGI-050T | |||
| Chamber Volume | 48 Liters | 96 Liters | 150 Liters | 250 Liters |
| Performance Data | ||||
| Heating System | Forced Air Convection | |||
| Temp. Range | Amb. +5 oC ~ +70 oC | |||
| Accuracy at 37.0 oC | ±0.2 oC | ±0.2 oC | ±0.2 oC | ±0.3 oC |
| Uniformity at 37.0 oC | ±0.5 oC | ±0.5 oC | ±1.0 oC | ±1.5 oC |
| Heat up time to 37.0 oC | 15 min. | 15 min. | 15 min. | 20 min. |
| Electrical Data | ||||
| Rated voltage | 230 ± 10% VAC | |||
| Power frequency | 50 / 60Hz | |||
| Heater Output | 150 W | 200 W | 250 W | 400 W |
| Nominal power | 160 W 0.7 amp | 210 W 1.0 amp | 260 W 1.2 amp | 410 W 2.0 amp |
| Phase | 1 Phase | |||
| Plug configuration | CEE 7/7 Schuko or BS 1363 | |||
| Dimension Data | ||||
| Inner Dims. (W x D x H mm) | 400 x 300 x 400 | 400 x 400 x 600 | 500 x 500 x 600 | 500 x 500 x 1000 |
| Outer Dims. (W x D x H mm) | 580 x 535 x 720 | 580 x 635 x 920 | 680 x 735 x 920 | 680 x 735 x 1320 |
| Inner Glass Door (W x H mm) | 461 x 477 | 461 x 677 | 561 x 677 | 561 x 1077 |
| No. of Shelf Positions | 12 ea | 20 ea | 20 ea | 36 ea |
| No. of Shelf included | 2 ea | 2 ea | 2 ea | 3 ea |
| No. of Cable Access Port | 1 ea | 1 ea | 1 ea | 1 ea |
| Packaging Data | ||||
| Shipping Dims. (WxDxH mm ) | 600 x 560 x 790 | 650 x 600 x 1040 | 770 x 720 x 1080 | 760 x 745 x 1390 |
| Type of packaging | Carton on a wooden palette | |||
| Net Weight | 32.0 kg | 60.0 kg | 70.0 kg | 75.0 kg |
| Shipping Weight | 36.0 kg | 68.0 kg | 78.0 kg | 82.0 kg |
| Controller |
| – DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER |
| Integrated Digital Microprocessor Control System |
| – GRAPHIC LCD DISPLAY |
| Back Light Graphic LCD Display provides user-friendly operating information |
| – UV COATED POLYCARBONATE TOUCH PANEL |
| Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability |
| – ENCODER TYPE JOG DIAL |
| Push to Start and Stop, Rotary turn to change values provides easy and simple user interface |
| – 0.1 oC CONTROL RESOLUTION |
| – TURN-ON TIMER up to 99 hour 59 min and alarm |
| – TURN-OFF DELAY TIMER up to 99 hour 59 min and alarm |
| – Temperature and Timer Memory Function in frequent use |
| – 3-ZONE PID ALGORITHM |
| – 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION |
| – POWER and TIMER RESTORE FUNCTION in case electric power outage |
| – CLASS A PT-100 Ω Sensor |
| – RS-232C PC COMMUNICATION INTERFACE [OPTION] |
| Safety |
| – DOOR SENSOR WITH DOOR OPEN AUDIO VISUAL ALARM |
| – MAXIMUM TEMPERATURE LIMIT SETTING, CUT-OFF HEATER AND AUDIO VISUAL ALARM |
| – DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT |
| Controller Program cut-off heater and AUDIO VISUAL ALARM in case +2 oC above set temperature |
| Independent analog thermostat cut-off heater 10% above set temperature |
| – HIGH TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM |
| – LOW TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM |
| – PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM |
| – OVER CURRENT CUT-OFF : Fuse |
