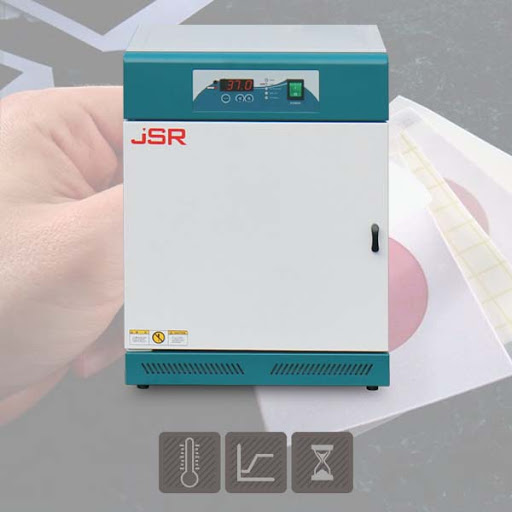

| Compact Incubator |
| JSGI-Series Compact Economic Incubator is suitable for personal, small food laboratory or HACCP Industry doing daily incubation of bacterial screening with Petri-Dish or Petri-Film. |
| Features- |
| Controller: |
| JSC-0D Digital PID Controller |
| ±0.1 oC Digital PID Controller with LED Display |
| Automatic START/STOP timer |
| Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation |
| Temperature calibration |
| Auto-tuning function |
| Class A Pt-100 Ω sensor |
| Safety |
| Digital system cut-off heater and AUDIO VISUAL ALARM in case +2 oC above set temperature |
| MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1 oC above maximum limit |
| SENSOR DISCONNECTION ALARM |
| OVER CURRENT CUT-OFF : Fuse |
Specification:
| Heating | JSGI-10T : Gravity Convection |
| JSGI-30T : Forced Air Convection | |
| Temp. Range | ambient + 5 oC ~ 50 oC |
| Accuracy | ± 0.2 oC at 37.0 oC |
| Uniformity | ± 0.5 oC at 37.0 oC |
| Control | Microprocessor PID Control Auto START / STOP Timer |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Chamber – Stainless Steel 304 | |
| JSGI-10T without Inner Glass Door | |
| JSGI-30T with Tempered Safety Inner Glass Door | |
| Shelf -including PVC coated wire shelf | |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 |
| Model: | JSGI-10T | JSGI-30T |
| Chamber Volume (Capacity) | 9.3 L | 31.5 L |
| Dimensions Inner | 210 x 210 x 210 | 300 x 300 x 350 |
| W x D x H mm Outer | 315 x 370 x 435 | 425 x 260 x 590 |
| Temperature Range | Ambient +5 oC to 50 oC | |
| Accuracy at 37.0 oC | ± 0.2 oC | ± 0.2 oC |
| Uniformity at 37.0 oC | ± 0.5 oC | ± 0.5 oC |
| Number of shelves / Max. No. | 2/2 | 2/2 |
| Heater Capacity | 60 W | 100 W |
| Power Rating | 0.3 Amp | 0.5 Amp |
| Power Plug | CEE 7/7 Schuko European Standard or BS 1363 British Plug | |
