| Key Features: |
| Maintenance free brushless DC motor |
| • Max. temperature to 340°C |
| • Stirring speed up to 1500 rpm |
| • Stainless steel work plate with ceramic coating provides good chemical-resistant performance |
| • Safety circuits provide overheating protection |
| • A wide variety of accessories are available |
Specification:

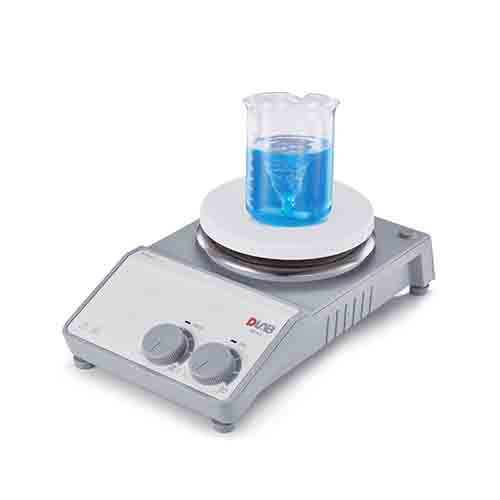

| Model: | MS-H-S |
| Work plate dimension | φ135mm(5 inch) |
| Work plate material | stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor rating input | 18W |
| Motor rating output | 10W |
| Power | 550W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 0-1500rpm |
| resolution | ±1rpm |
| Speed display | Scale |
| Temperature display | Scale |
| Heating temperature range | Room temp.-340°C |
| Over temperature protection | 420°C |
| Temperature display accuracy | ±0.5°C |
| Protection class | IP42 |
| Dimension[WxDxH] | 160×280×85mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
