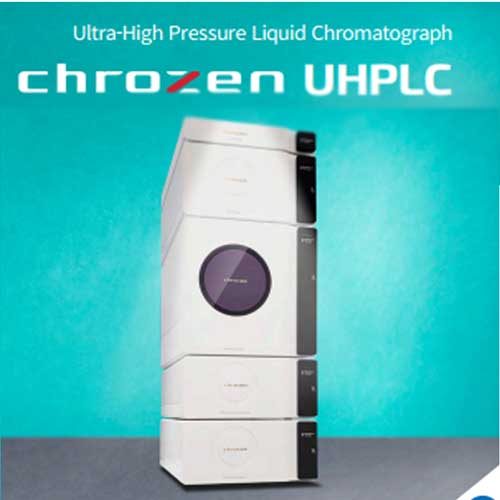

UHPLC System (Liquid Chromatography), ChroZen UHPLC

[vc_row][vc_column][vc_column_text]All of your effort to analyze the target compounds is all about how fast and reliably you analyze them within a  given time and a budget. This is what we call ‘Productivity’ and ‘Efficiency’. ChroZen UHPLC perfectly satisfies these two points by producing the results 4~10 times faster than conventional HPLCs while ensuring both superior sensitivity and resolution. In addition, the system endures real ultrahigh pressure, up to 18,800 psi (1,300 bar), with the powerful pump providing the accurate and precise flow rate by applying the concept of linear drive technology for two pairs of serially coupled pump heads, which means you can fully utilize the UHPLC columns and have the reliable data.

YOUNG IN Chromass has produced reliable and superior chromatographs over more than 30 years to this date by dedicating our research and development to chromatographic technologies in Korea. And now we’re proud to introduce the real UHPLC with confidence.



Features:

Beyond the Productivity & Efficiency

*** 4 to 10 times faster than typical runtimes on average· The solvent selection valve equipped in the pump allows two solvents available per pump to increase your work efficiency· Minimized consumption of solvents and samples Beyond the Productivity & Efficiency

Remarkable Resolution & Sensitivity

*** Total reflection cell with the liquid core waveguide technology to maintain the intensity in optical clarity, while minimizing the system dispersion· The very fast data acquisition rate, 125 Hz, for the rapid data processing

More than Reliability

*** Stable, precise and accurate flow rate by truly automatic compressibility compensation· Dual pistons in series pump with linear drive technology· Lower than 0.05 % RSD by the precise flow rate at even the gradient mode.

Specification:

ChroZen UHPLC Pump
Specification
Hydraulic system	Dual pistons in series pump with proprietary individual servo-controlled linear drive technology, featuring truly automatic compressibility compensation
Flow range	0.001 ~ 2.000 mL/min(Max. 5ml/min)
Flow precision	≤ 0.075 % RSD or 0.005 min SD, whichever is greater
Flow accuracy	± 1% or ± 10 μL/min, whichever is greater
Maximum operating pressure	18,800 psi(1300 bar)
Solvent selection	2 solvents per pump module (A/B)
Delay volume	50 μL when using 35 μL mixer / Optional mixer: 100μL, 150μL
Integrated degassing unit	Integrated 2-channel degasser, with 480 μL chambers
Communications	LAN
ChroZen UHPLC UV/Vis Detector
Specification
Maximum data rate	125 Hz (single wavelength detection)
Noise	<0.5 x 10-5 AU, at 254 nm (single wavelength detection)
Linearity	>2.0 AU upper limit
Wavelength range	190 ~ 900 nm
Wavelength accuracy	±1 nm, self-calibration with deuterium lines, verification with holmium oxide filter
Wavelength precision	<±0.1 nm
Flow cells	Standard: 2.4 µL volume, 10 mm cell path length and 1,000 psi Pressure maximum
Communication	LAN
ChroZen UHPLC PDA Detector
Specification
No. of PDA channel	1024
Wavelength range	190 ~ 950 nm
Noise	< ± 0.7 x 10-5 AU (Empty cell, 2 sec Rinse time, 254 nm)
Flow cell	Standard : 2.4 μL Volume, 10 mm cell path length and 1,000 psi pressure maximum
ChroZen UHPLC Autosampler
Specification
Injection range	Partial loopfill: 0 ~ 10 μL / Full loop /μL pick-up: not applicable
Precision reproducibility (valid at 1.0 cP)	RSD < 0.5% for partial loopfill injections, injection volumes > 5 μL at constant pressure
Pressure range	0 ~ 18,800 psi (0 ~ 1300 bar)
Sample capacity	96 x 2 mL vial (two trays default)
Carry over	0.05% with programmable needle wash
Communications	LAN
ChroZen UHPLC Column Compartment
Specification
Temperature range	4 ~ 90℃ (Peltier cooling and heating)
Temperature stability	0.05℃
No. of columns	Max. 3 ea of 15 cm columns
Communications	LAN
