| Features: |
| SMD Technology and Compact in size |
| Measures the Thickness, Diameter and Harness of the Tablet |
| Unit of Hardness in Newton (N), Kilopond (Kp), Strong Cobb (Sc) |
| Precise positioning of sample accommodates any shape tablet from 1.5 to 35mm Diameter (length) |
| Upto 99 Test Statistics |
| Rs 232 Interface for connecting with PC |
| Parallel Printer Interface for Dot Matrix Printer |
| Password Protection and Factory Setting Reset |
| Self Diagnosis and Fault Localization |
| 3 Point Calibration |
| Illuminated LED Display |
| Calibration and Validation : Simple & Easy Calibration and/or Verification (Validation) with Certified 10mm Gauge Block for Distance Parameter and 10Kg Weight for Hardness Parameter. Distance Validation with 10mm cert. block (thickness and diameter) |
Specification:

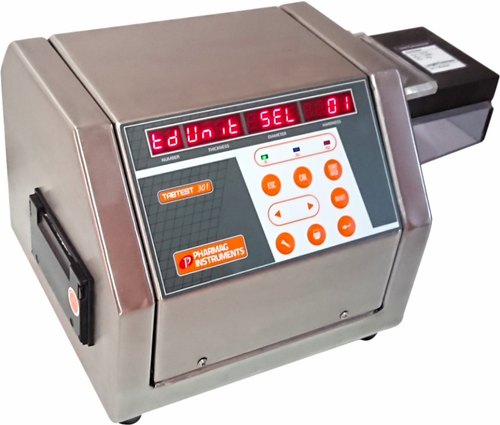

| Model: TABTEST-301 |
| Parameter: Thickness, Diameter, Hardness |
| Range: Thickness: 1.5 – 35 mm |
| Diameter: 1.5 – 35 mm |
| Hardness: 5 – 500 N |
| Units of Measurement: Thickness: Millimeters/Inches |
| Diameter: Millimeters/Inches |
| Hardness: N, Kp, Sc |
| Accuracy: Thickness: ±0.05 mm |
| Diameter: ±0.05 mm |
| Hardness: ± 1 N |
| Standard Accessories: Standard Jaw Plate, Safety Shield Brush, Embedded Software, Allen Key (4mm), Screw Driver, Mains Cord, Tablet Collection Tray, Operating Manual |
| Optional Accessories: |
| · Calibration Ring Weight: 10 Kg (Optional on Payment) |
| · Hook Included |
| · IQ/OQ Documentation BDT = 10,000.00 |
| · Certified Stainless steel Gauze Block 10mm BDT = 8,000.00 |
