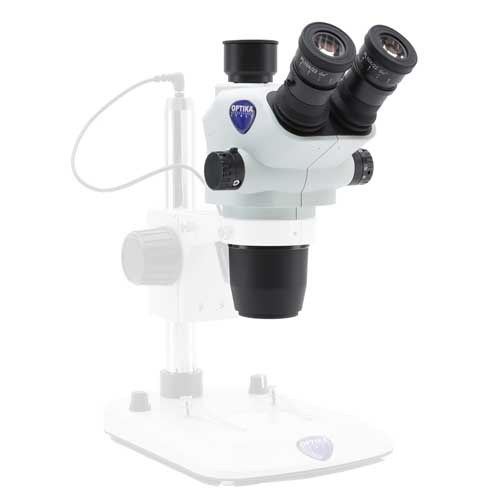

Stereo Microscope Trinocular Head, Model: SZO-T Optika Italy

SZO Heads – Addressed For Extreme Reliability & Repeatability
» Ensuring the sharpest vision, high productivity, repetitive analysis
» 3D Greenough view for high-resolution images & large field depth
» 23 mm field number and large working distance (up 110 mm)
» 6.72:1 zoom ratio – zoom magnification from 6.7x to 45x
» Simultaneous eyepiece & camera observation (on SZO-T)
» Multi-position click-stop – no need to move eyes from eyepieces

Head: Trinocular (split ratio: 70/30), 360° rotating on all stands and 45° inclined.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepieces.
Eyepieces: WF10x/23 mm, high eyepoint, secured by a screw and with retractable rubber cups.
Objective: Parfocal achromatic zoom 0.67x…4.5x (zoom factor 6.72:1) with click-stop.
Working distance: 110 mm.
