| -20°C Refrigerated Circulation Bath |
| Heated/Refrigerated circulating open bath system capable of reaching temperature as low as -20°C and heating up to 120°C for a wide variety of laboratory heating and cooling applications. Internal circulation of thermal fluid within the bath allows precise uniformity within ±0.1°C. Circulation pump enables to circulates heated or refrigerated thermal fluid to external equipments such applications as reactor, condenser, rotary evaporator or controlling the temperature of laboratory equipment such as chromatography columns, viscometers, and densitometers. External circulation pump capacity 10 liters/min. in flow rate and 0.5 bar in pressure. |
| Technical Specifications: |
| Capacity: 7 Liter |
| Temperature: Range: -20°C to + 120°C |
| Heating Type: Direct heating by immersed stainless steel incoloy heater with circulation |
| Accuracy: ± 0.1°C at -10.0°C |
| Uniformity: ± 0.3°C at -10.0°C |
| Heater Capacity: 700 Watt |
| Control: Main Controller: Digital PID Controller |
| Wait off Timer: mm:ss / hh:mm / Contnuous Selectable |
| Sensor: Pt 100Ω |
| Safety Device: Temperature: Hydraulic Ove Temperature Protection Safety Device |
| Electrical: CG Fuse |
| Dimensions W x D x H mm: Inner: 155 x 300 x 150 |
| Usable: 155 x 90 x 150 |
| Outer: 290 x 470 x 670 |
| Material: Bath: Stainless Steel HL (AISI 304) |
| External: Steel 1T with Epoxy Powder Coating |
| Lid: Stainless steel lid included |
| Power Rating: 6.7 Amp |
| Electrical Requirement: 120VAC 60Hz or 220VAC 50/60Hz |

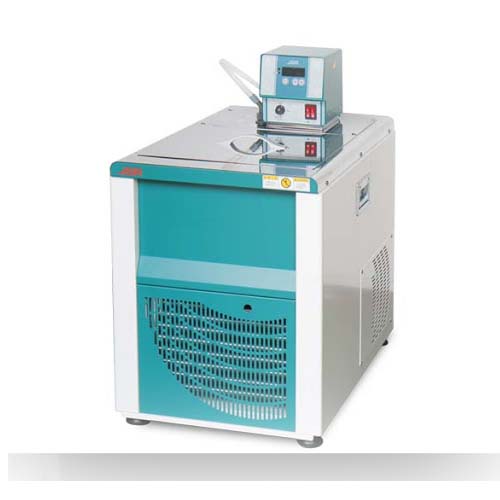

Refrigerated Bath Circulator (Chiller), JSRC-06C
৳ 200,000.00
Temp. Range: -20°C to + 120°C
Capacity: 7 Liter
Model: JSRC-06C
Brand: JSR
Country: South Korea
