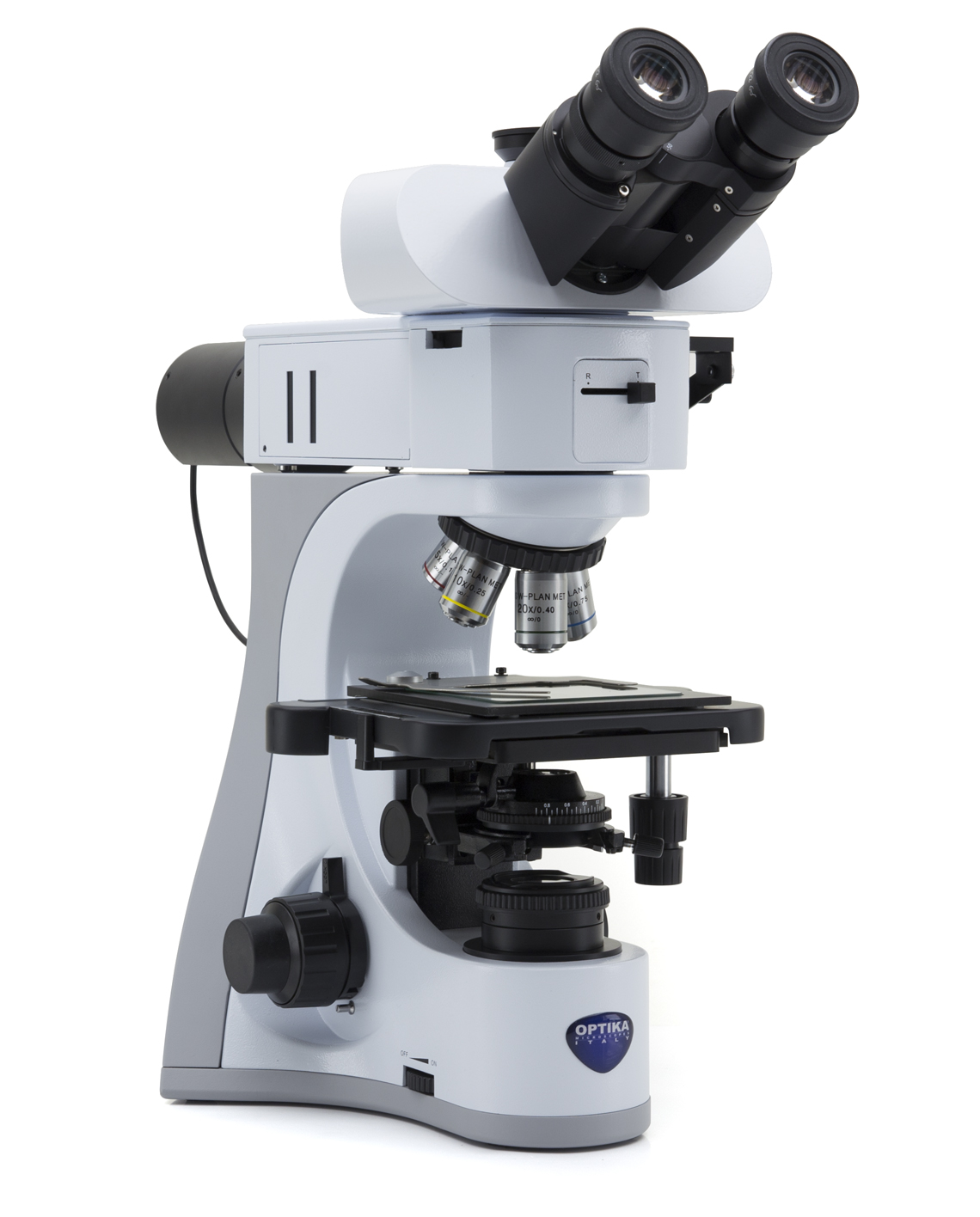

Metallurgical Microscope (Upright), Model: B-500MET

    Metallurgical Microscope (Upright), Model: B-500MET

    ৳ 505,000.00

    Available on backorder

    Trinocular, 30° inclined; 360° rotating.
    Eyepieces: WF10X/22
    Model: B-500MET
    Brand: OPTIKA
    Country: ITALY

    Category:
    Features:
    Upright Metallurgical Microscope, IOS MET objectives, X-LED incident & transmitted illumination
    Technical Specifications
    Model:B-500MET
    Illumination Transmitted and incident light:
    Light source type X-LED with white LED; light intensity control using a knob on left side of the frame.
    LED power 3.6W, comparable to an halogen bulb 35W.
    Color temperature: 6300K
    LED average lifetime approx.: 50.000h.
    The light exit can be used as a filter holder for additional filters (blue, yellow, frosted).
    Voltage: 110/230Vac, 50/60Hz, 0.4/0.8A; Fuse: T3.15A 250V
    Max power required: 7W
    Observation Modes:  Brightfield (transmitted and reflected light), simple polarized light (reflected light).
    Simple darkfield (reflected light).
    Focusing:  Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact
    between objective and specimen. Adjustable tension of coarse focusing knob.
    Stage:  Double layer with mechanical sliding stage, size 175x145mm, X-Y movement range 76×52, specimen holder for
    two slides. Vernier scale on the two axes, accuracy 0,1 mm.
    Nosepiece:  Quintuple revolving nosepiece, rotation on ball bearings.
    Head:  Trinocular observation head, inclined 30° and rotatable 360°. Diopter adjustment on left eyepiece sleeve
    Interpupillary adjustment 55-75 mm.
    Eyepieces:  Wide field eyepieces WF10X/22 with field number 22.
    Objectives:  Infinity corrected optical system IOS (Infinity Optical System).
    LWD MET Plan-achromatic objectives infinity corrected, made by following objectives:
    -) Plan-achromatic IOS 5X LWD, A.N. 0,15, W.D. 10,8 mm
    -) Plan-achromatic IOS 10X LWD, A.N. 0,3, W.D. 10 mm
    -) Plan-achromatic IOS 20x LWD, A.N. 0,45, W.D. 4 mm
    -) Plan-achromatic IOS 50X LWD, A.N. 0,55, W.D. 7,9 mm
    -) Plan-achromatic IOS 100X, A.N. 0.90, W.D. 0.3 mm
    All objectives are treated with an anti-fungus treatment.
    Condenser:  Swing-out type, N.A. 0.70 with centering system.
    Dimensions:  HEIGHT: 480 mm WIDHT: 245 mm
    DEPTH: 380 mm WEIGHT: 9 kg
    Accessories:  Instruction manual and dust cover included
