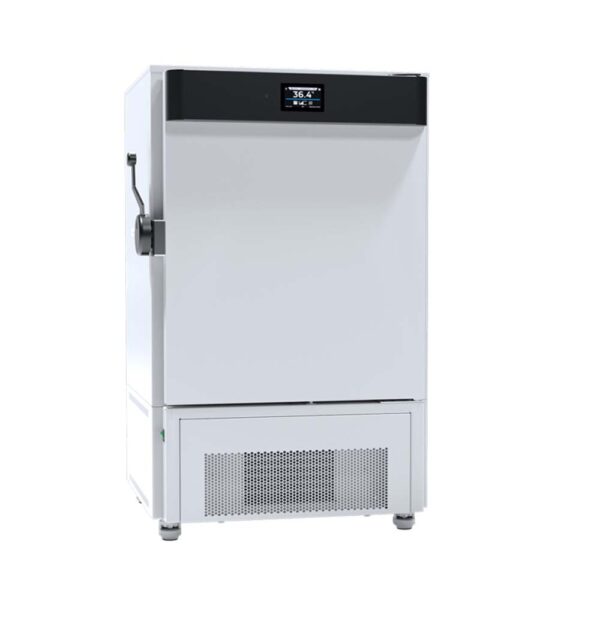

| Laboratory freezer ZLN-T 200 |
| Application: |
| – long-term storage of samples and biological material for research |
| – storage of easily decomposing material (e.g. solid state) |
| – freeze resistance tests (e.g. of building materials: concrete, wood etc.) |
| – pre-freezing |
| – plasma storage |
| Controller: |
| Smart and Smart PRO |
Specification:
| TECHNICAL DATA | |
| air convection | natural |
| chamber capacity [l] | 210 |
| working capacity [l] | 180 |
| controller | microprocessor PID |
| display | 4,3″ full colour touch screen |
| TEMPERATURE | |
| temperature range [°C] | -40…0 |
| temperature resolution every … [°C] | 0,1 |
| temperature fluctiation at -20°C [°C] | 0,5 |
| temperature variation at -20°C [°C] | 2,5 |
| CHAMBER | |
| door type | solid |
| interior | |
| C Smart | stainless steel to DIN 1.4016 |
| CS Smart | stainless steel to DIN 1.4016 |
| P Smart | acid-proof stainless steel to DIN 1.4301 |
| PS Smart | acid-proof stainless steel to DIN 1.4301 |
| housing | |
| C Smart | powder coated sheet |
| CS Smart | stainless steel polished |
| P Smart | powder coated sheet |
| PS Smart | stainless steel polished |
| overall dims [mm] /1/ | |
| width A | 820 |
| height B | 1380 |
| depth C | 810 |
| internal dims [mm] | |
| width D | 450 |
| width D’ | 520 |
| height E | 770 |
| depth F | 520 |
| depth F’ | 530 |
| shelves (standard | max) | 2 | 4 |
| max shelf workload [kg] /2/ | 10 |
| – reinforced shelf version (PW) [kg] /3/ | 50 |
| max unit workload [kg] | 65 |
| – reinforced unit version (W) [kg] /4/ | 130 |
| weight [kg] | 120 |
| ELECTRICAL PARAMETERS | |
| voltage* | 230V 50-60Hz |
| nominal power [W] | 450 |
| refrigerant | R290 / GWP=3 |
| warranty | 24 months |
| manufacturer | POL-EKO-APARATURA |
