Specifications
| Chip Compatibility: | Ion 314™ Chip (200 bases Q1 2014, 400 bases 2014) Ion 316™ Chip (200 bases Q1 2014, 400 bases 2014) Ion 318™ Chip (200 bases Q1 2014, 400 bases 2014) Ion PI™ Chip (200 bases Q1 2014) Ion PII™ Chip* (TBA) |
|---|---|
| Current Limit: | 14 A (max) |
| Dimensions: | 28 x 22 x 28 in (71 x 55 x 71 cm) |
| Frequency: | 50⁄60 Hz |
| High Throughput Compatibility: | Automated Protocols, High Throughput-Compatible |
| Operating Environment: | Temperature: 15°C-25°C |
| Operating System: | Ion Personal Genome Machine (PGM™) System, Ion Proton™ System |
| Power Limit: | 1,350 W |
| Product Size: | 1 system |
| Run Time: | Varies with chip type and read length selected |
| Voltage Limit: | 100 V (min) to 240 V (max) |

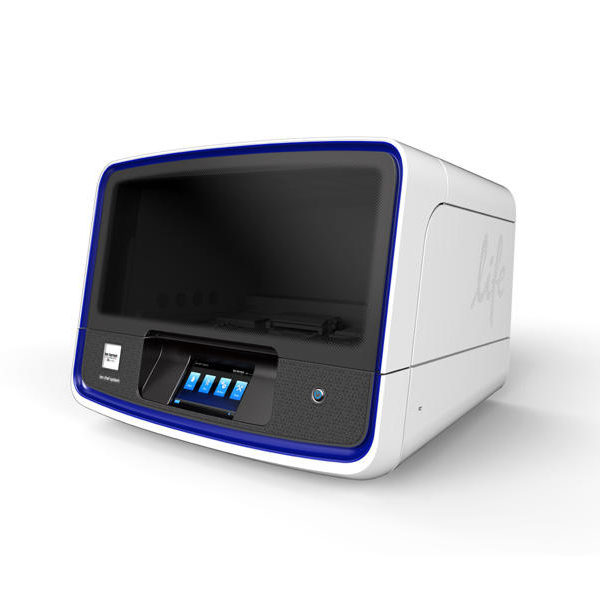

The Ion Chef™ System features
- Automated template preparation and chip loading
- Cartridge-based reagent system
- Sample- and reagent-tracking capability
- Intuitive user interface
- On-board diagnostics
Simplify the Ion Torrent™ NGS Workflow
The Ion Chef™ System simplifies the Ion Torrent™ next generation sequencing workflow by integrating several manual and instrument steps into a single process. The Ion Chef™ System workflow incorporates: amplification mix preparation, emulsification, amplification, breaking, enrichment, washing, sequencing prep, and chip preparation & loading. The intuitive touch-screen interface provides easy access for users with any experience level.
Minimize Variability & Load Chips Reproducibly
The Ion Chef™ System provides reproducible chip loading for users with any experience level by automating multiple manual chip-loading steps. The sophisticated visual system inside the Ion Chef™ System is designed to help reduce user-introduced error and variability by providing barcode reading and positive ID of samples, chips, and reagents. The visual system performs the set-up check before the run, as well as the reagents and consumables load and unload check, calibration, and diagnostics.
Save Time and Labor
The Ion Chef™ System enables significant time and labor savings by offering: 1) quick and easy set-up that typically requires less than 15 minutes hands-on time, and 2) loading of up to two chips in a single-day workflow.
Support for All Ion Torrent™ Sequencing Workflows
The flexible Ion Chef™ System is designed to provide automated, consistent template preparation for sequencing on Ion PGM™ and Ion Proton™ systems using any of the corresponding chips*, or template preparation and sequencing chemistries.
(*) The content herein may relate to products that have not been officially released and is subject to change without notice.
