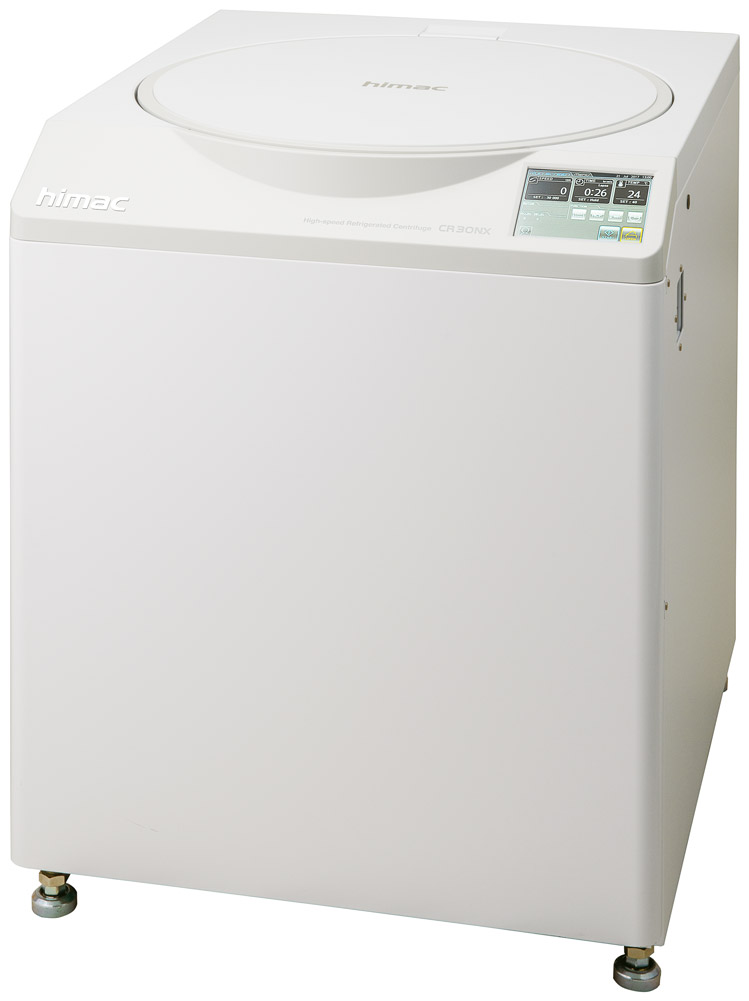

himac CR30NX High-speed Refrigerated Centrifuge

110,000 xg Swinging bucket rotor

Do you need an ultracentrifuge, because you need 100,000 xg for a swing rotor centrifugation?
With 110,000 xg swing rotor centrifugation, CR30NX andtop loading swing rotor R25ST supports your Rate zonal centrifugation or Isopycnic centrifugation.

110,000 xg Fixed angle rotor

Or with 110,000 xg angle rotor centrifugation,CR30NX supports your cell fractionation.

6,000 mL rotors

And, in CR30NX, two types of 6,000 mL rotors are available; R7A (6 x 1,000 mL bottle) and R9A2 (4 x 1,500 mL bottle).

High-end Technologies

All rotors maintained at 4℃ at maximum rotor speed.

Powerful refrigeration system with appropriate vacuum control

Low-noise

With the latest noise reduction system, the operating sound level is 56 dBA; the quietest in this class high-speed refrigerated centrifuges, as of June 2018.

New rotor ID detection and self-locking rotor system

Rotor model and its maximum speed are automatically identified just the rotor is placed on the drive shaft.In addition, rotor system is self-locking and no need install the rotor by screw, same as existing himac high-speed centrifuges.

• rotor speed
• rotor temperature
• rotor ID
• vacuum level

MFRS : Mist filter refresh system

Rotating the filter regularly by the motor, oil is removed from the filter and returned to the vacuum pump.

Useful functions

Data communication system

himac View

• 1) Remote operation and monitoring: “himac View” with your iPhone or Android phone.



himac LogManager

2) Optional log management software himac LogManager
(Digital signature, audit trail, and encrypted data files, etc. are available.)

Door opener foot switch (option)
