| Key Features |
| • Powerful centrifugal force of 15100xg and max. speed of 15000rpm ideal for various applications |
| • Brushless DC motor drive quickly accelerates the rotor to set speed |
| • Quiet working, Low noise ≤56dB |

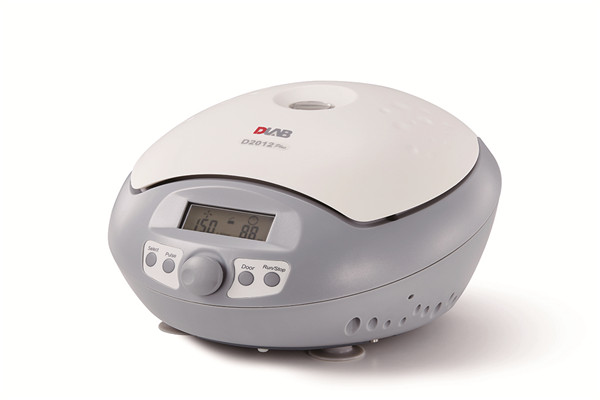

| • D2012 is proven by IEC/EN 61010-1 |
| • D2012 Plus passed the rigorous explosion-proof test and accredited with CE, cTUVus, FCC certificates, and MCA test. MCA test according to IEC/EN61010-2-20 |
| Technical Specifications: |
| Max. Speed: 15000rpm (500~15000rpm), increment:100rpm |
| Max. RCF: 15100×g, increment:100×g |
| Speed Accuracy: ±20 rpm |
| Rotor Capacity: 0.2mL/0.5mL/1.5mL/ 2mL×12 |
| Run Time: 30sec~99min / Continuous |
| Driving Motor: Brushless DC motor |
| Safety Devices: |
| Door interlock, |
| Over-speed detection, |
| Over-temperature detection, |
| Automatic internal diagnosis |
| Power: Single-phase, AC110V~240V, 50Hz/60Hz, 3A 100W |
| Noise level: ≤54dB |
| Acceleration /Braking time: 11s↑/9s↓ |
| Dimension [D×W×H]: 255×245×140mm |
| Weight: 6kg |
| Certification: EMC, CE, FCC, ICES, cTUVus, CB |
| Advanced features: Speed/RCF switch, Short-time run function, sound-alert function |
