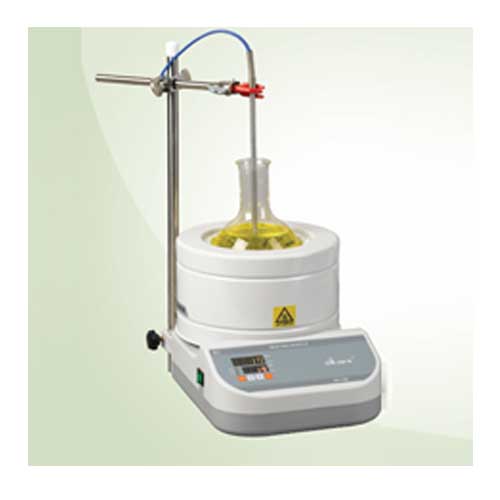

| **Heating mantles for round bottom flask |
| **Max. temperature 450℃ |
| **Accurate temperature control by PID auto-tuning function(built-in timer) |
| **Ceramic fiber with strong thermal resistance |
Features:
| Heating mantle of the standard type with built-in temperature controller and easy to use |
| Temperature controller with function of the built-in timer(99hr59min) |
| Ceramic fiber with strong thermal-resistance has excellent thermal insulation and double housing design (DM601~DM607) maintains low temperature of the mantle surface for user’s safety |
| External temperature sensor(Option) for the control of the sample temperature and the precise experiment. |
| By use of the temperature controller with function of the built-in digital PID auto-tuning, control temperature accurately and confirm set temperature and actual temperature at the same time |
| Inner mantle part of the heating element consists of soft glass fiber, protected from damage of the flask and excellent contact between the heating element and flask and heating effectiveness is excellent |
| With thermal resistance and durability bearing at the inner temperature over 450’C, strong aluminum housing and powder coating with corrosion-proof |
General Specification:
| Heating Element Temperature : Up to 450’C max. |
| Temp. Controller : Digital PID auto-tuning |
| Temp. Accuracy : +/-1’C (on using external sensor) |
| Material : Mantle-Powder coated aluminum case, Body-Polypropylene |
| Support rod : Stainless steel, Φ12.7X400mm(Option) |
| Thermal Insulation : Ceramic fiber |
| Timer : 99hr59min |
| Sensor : K type |
| Support rod clamp : For 12.7mm dia. Support rod(with 100ml-5000ml) |
| Power su |
| Model | Capacity | Watts | Dimensions | Internal | Weight (Kg) |
| WxDxH(mm) | (height : mm) | ||||
| DM 602 | 250ml | 150 | 162×256×162 | 60 | 1.6 |
| DM 603 | 500ml | 260 | 192×276×177 | 75 | 1.9 |
| DM 604 | 1000ml | 380 | 214×298×187 | 85 | 2.2 |
| DM 605 | 2000ml | 380 | 248×332×214 | 115 |
