| Key Features |
| Digital camera with high-sensitivity CMOS sensor |
| Image visualised within a large colour monitor |
| Light weight compact hood with easy access door and built-in inner lights |
| Safety switches disconnect the UV source when the easy access door is opened |
Specification:
| Camera: |
| Type 5x optical / 4x digital zoom camera- |
| Effective Pixels 14.7 megapixels |
| CCD 1/1.7” high-density CCD |
| Maximum Aperture f/2.8 (W) ~ f/4.5 (T) |
| Shutter Speed 15 ~ 1/4000s |
| Filters +3 Close up and EtBr; |
| optional SYBR green |
| Storage Media 2MB memory card |
| Computer Interface USB 2.0 Hi Speed (mini-B jack) |
| Video Out NTSC/PAL |
| Darkroom: |
| Multi-power Source For camera, inner white LED, |
| Capture Manual-save in BMP format |
| Inner White Light 2x3W LED |
| Safety Device Safety door switch |
| Weight & Dimensions 6.1kg; 290x220x320mm |
| Voltage Rating 110~220V |
| Screen: |
| Type 8” TFT |
| Resolution 600×800 Pixels |
| Brightness 350 cd/mm2 |
| Constant Ratio 300 : 1 |
| Display Mode NTSC / PAL / SECAM mode |
| auto switching |

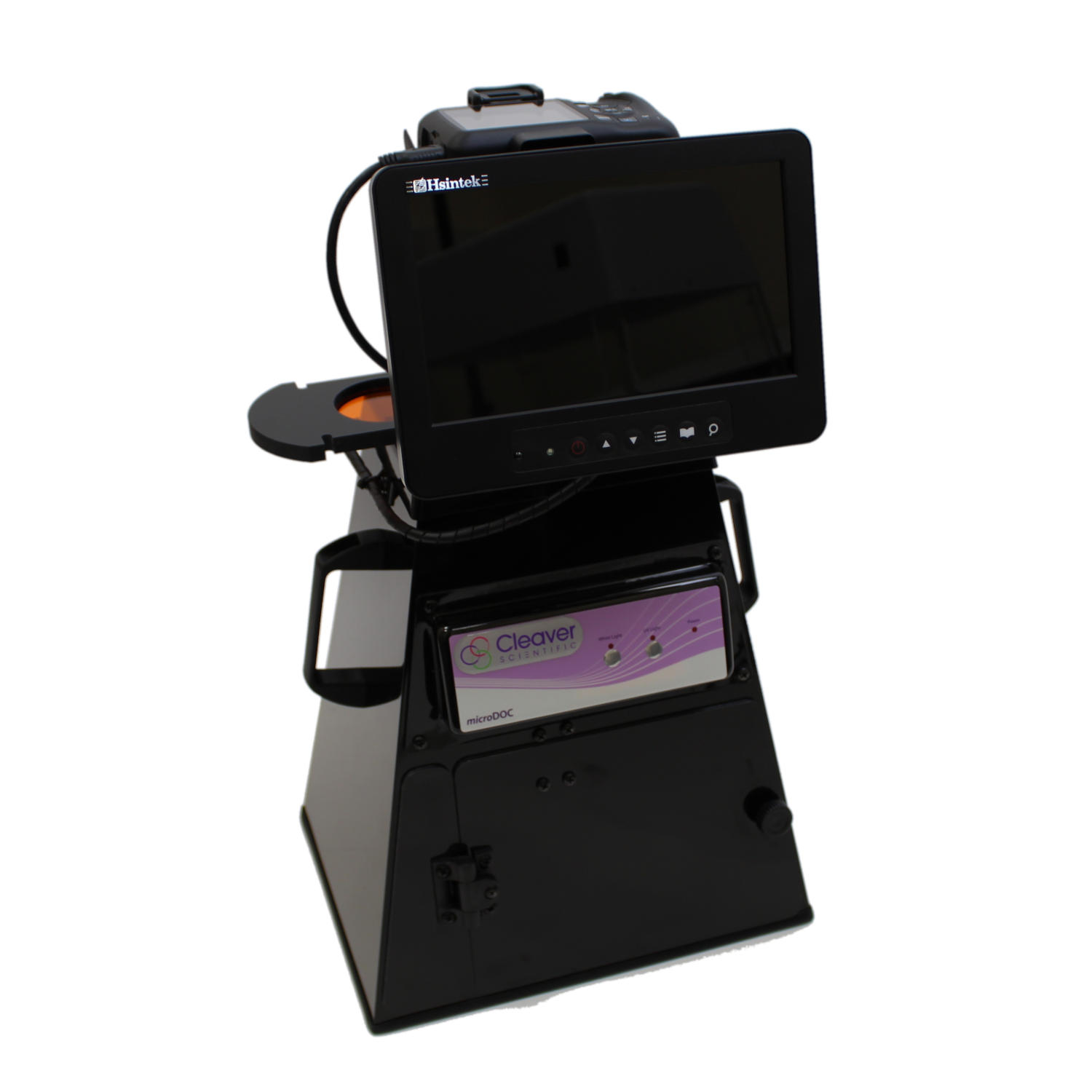

| ■ 14.7 Megapixel digital CCD camera MicroDoc |
| ■ Image visualised within a large 8” TFT colour monitor |
| ■ Light weight compact hood with easy access door and built-in inner lights |
| ■Safety switches disconnect the UV source when the easy access door is opened |
| ■ Computer-free operation |
| ■Available on its own with camera and darkroom, or as a complete gel documentation system with transilluminator, either with or without software. |
| ■Transilluminators supplied in single and dual wavelength formats – see |
| TotalLab™ 1D software |
| TotalLab™ 1D software is supplied only as part of a complete package with each of the microDOC and transilluminator options. Its main functions include: lane creation, background subtraction, band detection, profile deconvolution, and molecular size, pI and quantity calibration. More sophisticated TotalLab™ Quant and Phoretix standalone software options are available for 1D applications that require band matching, array, colony counting and image ToolBox functionalities. |
