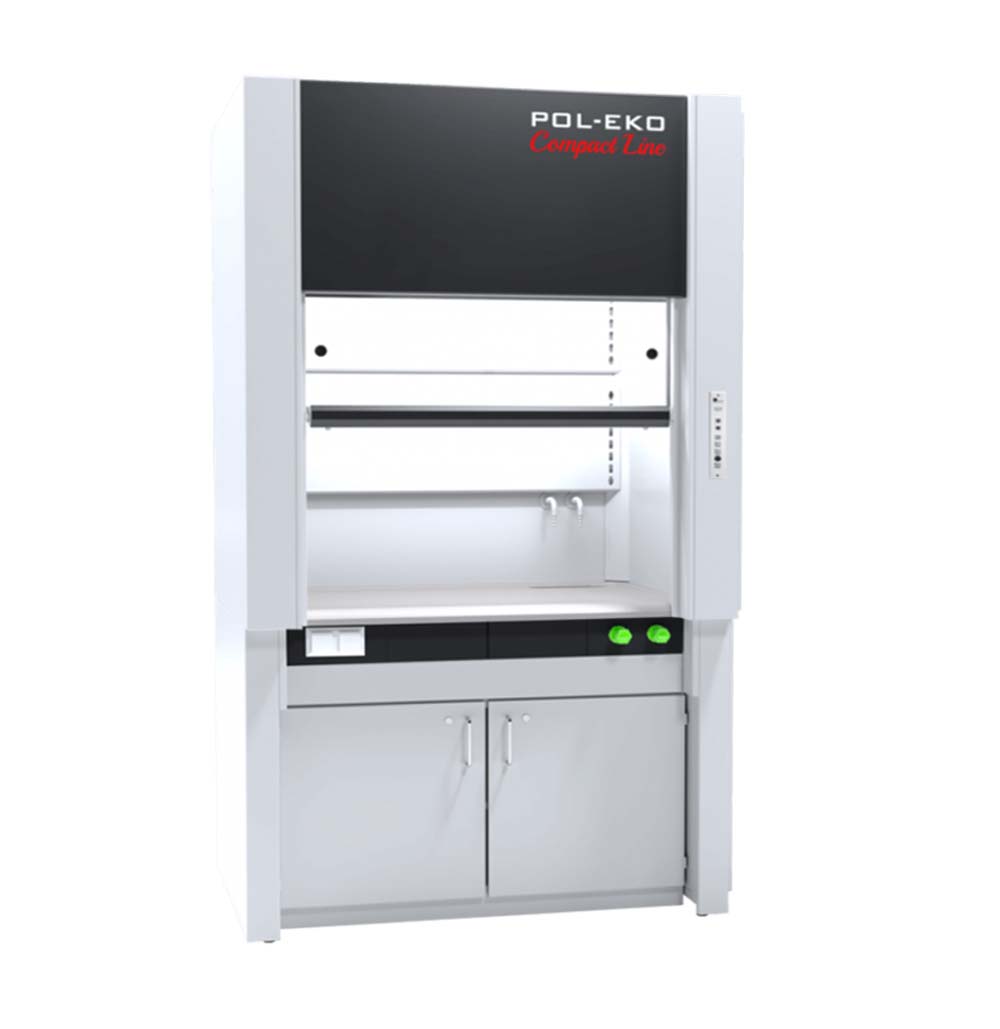

| Fume hood 1200 |
| Standard equipment for fume hoods: |
| 2 x 230VAC 50Hz electrical sockets |
| 2 x water taps with valves in the front panel |
| ceramic sink 280x80mm |
| illumination of the working chamber |
| air-flow sensor (Schneider FM 550-A-0-E) |
| window, opening upwards at 500 mm height (max 810 mm), additionally sliding glass (right/left) |
| Optional equipment : |
| ventilated under bench cabinet made of steel covered by chemically resistant epoxy paint, connected to the ventilation system of fume hood, |
| additional media: gas valves (technical gases and flammable gases), electrical sockets, |
| explosion-proof equipment (illumination, electric sockets with plug adapters) |
| glazed side walls 700×500 mm, made of tempered safety glass 4 mm |
| grate on the back wall made of stainless steel |
| elements of the fume hood made of stainless steel EN 1.4404 (construction, internal chamber, worktop, housing) |
| possibility of placing safety cabinet under the fume hood instead of a standard cabinet |
Date Sheet:
| overall dims (mm) | |
| width A | 1280 |
| height B | 2325…2600 |
| depth C | 965 (with controller) |
| working space dims (mm) | |
| width D | 1150 |
| height E | 1220 |
| depth F | 750 |
| recommended airflow [m3/h] | 600…950 |
| nominal power [W] | 46 |
| power supply | 230 VAC 50Hz |
| exit air sub pipe diameter [mm] | 200 |
| water supply | G ½‘’ |
| sewage connection diameter [mm] | 50 |
| airflow sensor (Schneider FM 550-A-0-E) | yes, confirmity with standards PN-EN 14175-2 |
| electrical insulation class | I class |
| warranty | 24 months |
| manufacturer | POL-EKO-APARATURA Sp. J. |
