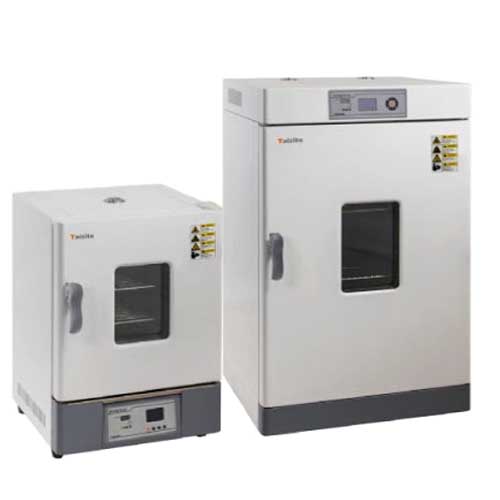

FCO drying oven is widely used for drying, baking, soluble wax, solidification, and thermal treatment in university, industrial and mining, food processing, biochemistry, agriculture, pharmaceuticals industry, etc. Features1. High-Quality material 2. Good temperature uniformity3. Heat isolated casing door4. Low noise5. Speed adjusting fan (Model L)6. Independent temperature limiter (Model L)
Technical Specification:
-
Capacity 30 Liters
-
Heating Type = Forced Convention
-
Temp Range = RT+10 to 300°C
-
Temp Resolution = 0.1°C
-
Temp fluctuation = ±1°C
-
Temp accuracy = ±2.5%
-
Chamber Material = Stainless Steel
-
External Material = Cold Steel, Powder coating
-
Thermal Insulation = aluminum Silicate Fiber
-
Heater = Stainless Steel Heating Tube
-
Rate Power = 0.8 Kw.
-
Air Outlet = Inner Diameter 28mm x1 (Top)
-
Temp Control = Fuzzy PID Control
-
Temp Display = Digital LED Display
-
Timer = 0-9,999 minutes
-
Sensor PT100
-
Safety Device = Over Temperature Alarm
-
Inner (WxDxH) mm. = 310x310x310
-
Exterior (WxDxH) mm = 428x500x723
-
Shelf load-bearing = 15Kg.
-
Shelf number = 2 (Standard)
-
Voltage = 220V
