| Camera specifications | |
| PC Camera resolution (MP) | 5.1 |
| Camera resolution (n° of pixels: W x H) | 2592×1944 |
| USB Signal output | USB 2.0 |
| Color / Monochrome | Color |
| Sensor Size | 1/2.5″ |
| Sensor Technology | CMOS |
| Sensor Type | APTINA CMOS |
| Rolling Shutter | Yes |
| Image Format | 3-Apr |
| Pixel Size (mm) | 2.2×2.2 |
| Frame rate full resolution (fps) | 7@2592×1944 |
| Frame rate other resolution (fps) | 27@1280×960; 90@640×480 |
| Sensitivity | 0.53 V/lux-second |
| Signal/noise Ratio (DB) | 40.5 |
| Dynamic range (DB) | 66.5 |
| ADC conversion | 8 Bit |
| Color Depth | 1, 4, 8, 24 Bit |
| Exposure time | 0.294 msec – 2 sec |
| Binning | 1×1; 2×2; 4×4 |
| IR filter | Yes |
| IR filter range (nm) | 380-650 (IR CUT) |
| Cooling Temperature | None |
| Camera Power | PC USB |
| C-Mount | Yes |
| Dimensions (mm) | 58 x 58 x 36.4 |
| Weight (Kg) | 0.18 |
| Camera accessories | |
| Optical adapter (for 23mm eyepiece tube) | 0.5x |
| Adapter ring | Yes |
| Diameter of adapter ring (mm) | 30 |
| Diameter of adapter ring (mm) | 30.5 |
| Calibration slide | Yes |
| USB cable (1.8m) | Yes |
| Environment specifications | |
| Working Temperature | -10°C up to +50°C |
| Storage Temperature | -20°C up to +60°C |
| Relative Humidity | 30% to 80% |
| Storage Humidity | 10% to 60% |
| Operating System | |
| OS | Windows 7 |
| OS | Windows 8 |
| OS | Windows 10 (32Bit) |
| OS | Windows 10 (64Bit) |
| OS | Osx (MAC Osx) starting from 10.7.5 |
| OS | Linux |
| Available Software | |
| SW | PROVIEW |
| SW | LITEVIEW |
| PC requirements | |
| PC | CPU: Intel Core2 – 2.8GZ or higher |
| PC | RAM: 2GB or more |
| PC | USB 2.0 |
| Warranty | |
| Years | 2 |

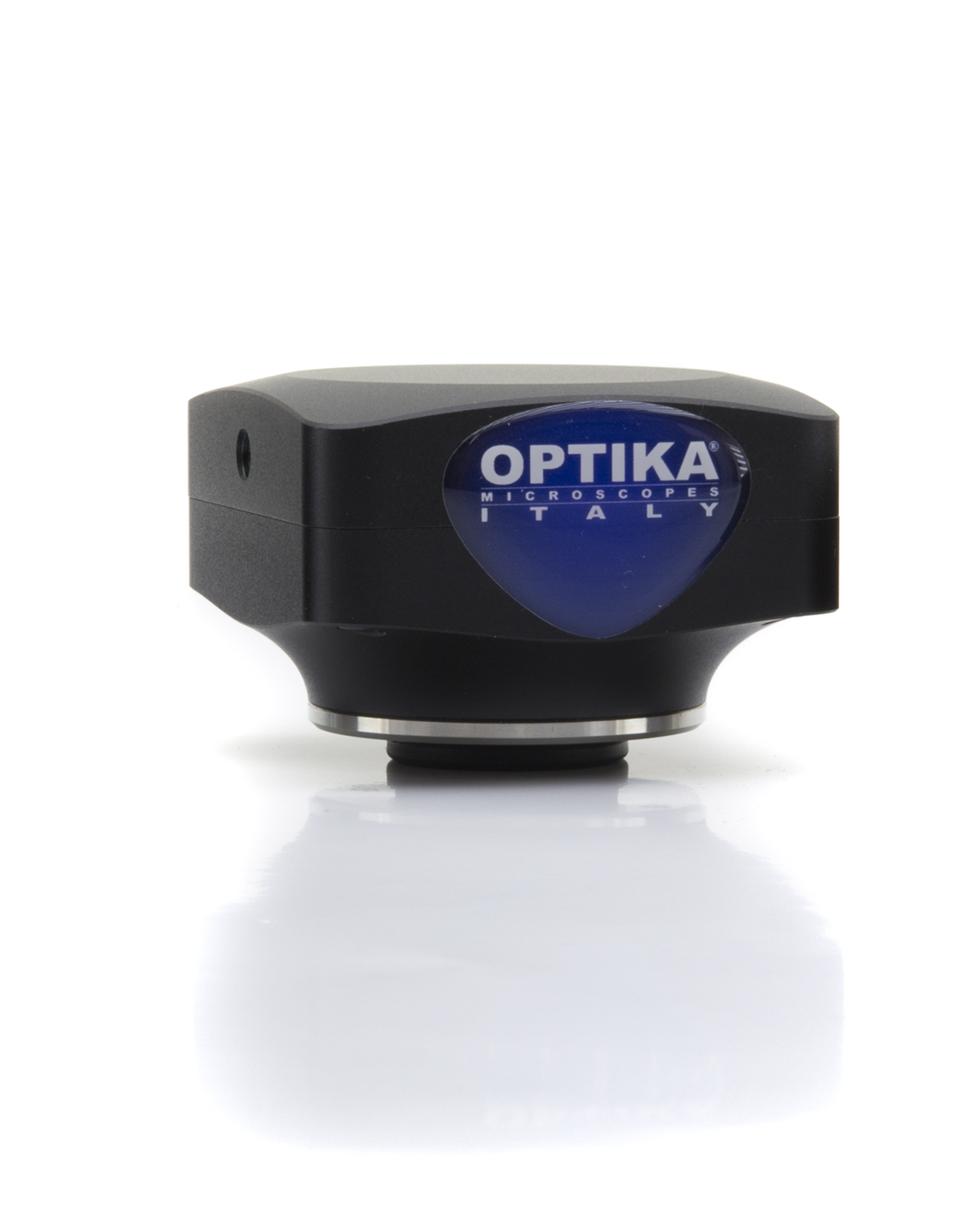

Camera for Microscope, Model: C-B5
৳ 67,000.00
PC Camera resolution (MP): 5.1
Camera resolution: 2592×1944
Model: C-B5
Brand: OPTIKA
Country: ITALY
