| Advanced routine laboratory microscope for brightfield observations with IOS W-PLAN objectives and rackless stage. The high-efficiency X-LED³ makes it reliable for all transmitted light observations for great-looking, rich and high-quality view. |
| Observation Methods: Brightfield |
| Head: Trinocular, 30° inclined, splitting ratio eyepieces/photo tube: 50% – 50% |
| Eyepieces: Plan wide field, PL 10x/22, high eyepoint, with dioptric adjustment on left eyepiece |
| Nosepiece: Quintuple, reversed |
| Objectives:OS W-PLAN 4x, 10x, 40x, 100x (oil) |
| Stage:Rackless, mechanical, 233×147 mm, 78×54 mm movement range |
| Focusing: Coaxial coarse & fine (200μm/turn), upper stop, adjustable tension |
| Transmitted Illumination & |
| Diaphragms: High-efficiency X-LED3 (3.6 W), manual brightness control. Köhler illumination system with field diaphragm |
| Condenser: N.A. 0.2/0.9, swing-out, sliding-in and with centering system |

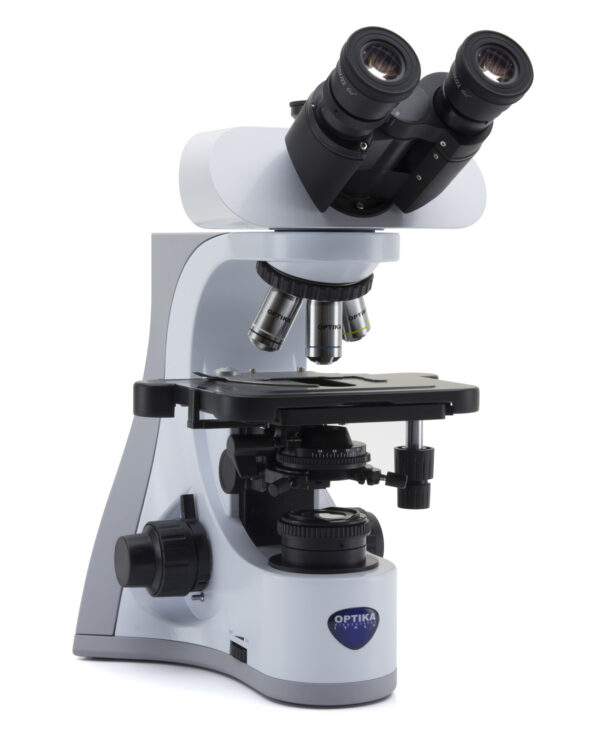

Brightfield Microscope Trinocular, Model: B-510BF
৳ 190,000.00
Trinocular, 30° inclined; 360° rotating.
Eyepieces: WF10X/22
Model: B-510BF
Brand: OPTIKA
Country: ITALY
